EDU-ONE
Technology in the service of training
135 / 92 / 147Dimensions X / Y / Z mm
2 TechnologiesMilling & Additive Manufacturing
3 ou 5 AxesFlexibility in learning
240 Vac / 6 ASingle-phase power supply
Milling
High-performance machining spindle:- Power: 400 – watts
- Speed: 10,000 – RPM
- Standard : ER – DIN
Made in France
- Designed, manufactured and assembled in France (Occitanie region).
- Local French after-sales service.
- CE certification issued in France.
- The ergonomic and safe enclosure fully complies with regulatory requirements.
Computerised Control
SINUMERIK ONE (Siemens option)
A user-friendly, high-performance and reliable machine control system. All the power of a professional CNC system at your fingertips.
- Mobile control console with a 10-inch touchscreen.
- Features: 1 emergency stop button, 1 potentiometer, 2 USB ports.
- Reliability: A Windows-free architecture for greater stability.
- Long-term availability: Spare parts available for over 10 years.

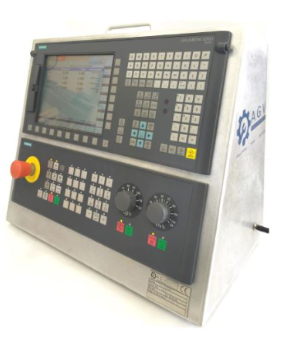

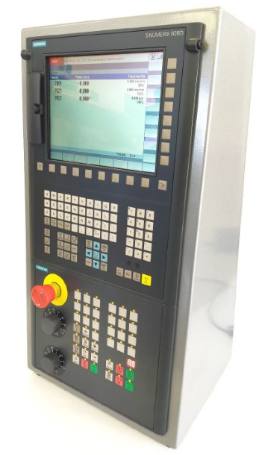

Didatest SINUMERIK
The ideal system for your CNC training and testing
Your Learning Objectives
- Use a Standard 828D unit, which is exactly the same as the one fitted to an industrial machine.
- Operating a Siemens CNC via the official SINUMERIK Operate interface.
- Programme natively in ISO language and in conversational mode.
- Dynamically simulate programmes and toolpaths.
- Implement a truly comprehensive tools management system.
Technical Specifications
- Mode selector: A pre-start switch allows you to instantly select a milling or turning machine.
- Pre-production for filming: Spindle, X, Z and rotating tool control (C-axis).
- Milling set-up: Spindle, X, Y, Z and additional A-axis control.
- A system that is fully open to modifications and parameter testing.
- Ergonomics: Easy to store and use, low noise level, robust design with no fan or battery.
- High-quality aluminium frame with a metallic grey finish (other colours available on request).

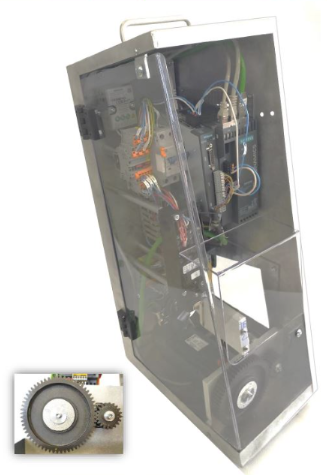

Didatest SIMOTICS
For synchronous motors — Additional control module
Your Learning Objectives
- To enable the full configuration of an industrial variable-speed drive and its control system.
- Declare and configure a topology with a second measurement system (closed-loop).
- Simulate real-life faults using its numerous adjustment switches.
- Create and quantify a backlash to understand how to adjust the servo gains.
- View tracking errors between the motor encoder and the load encoder in real time.
- Edit a PLC programme related to servo control.
- Supplied with a software toolkit (Toolbox) compatible with the API programming environment.
Technical Specifications
- Access security: Moving mechanical parts and the 230V power supply are protected by an automatic door interlock.
- Components: Genuine Siemens incremental encoder.
- Gear train: Precision POM gears with a reduction ratio of 1:3.
- Visibility: A door made of transparent, ultra-UV-resistant polymer, allowing the mechanical behaviour to be observed.
- Dimensions: H=600mm, W=230mm, D=350mm | Weight = 15kg.
- Power supply: 230 V AC / 10 amps.

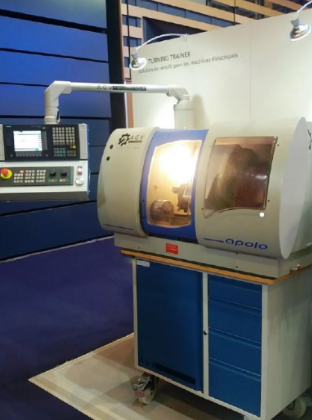

Educational CNC Lathe
The ideal system for comprehensive training in machining and path programming
Your Learning Objectives
- Working with standardised Siemens equipment, modelled on industrial technologies.
- Operating and controlling a Siemens SINUMERIK numerical control unit.
- Programme using standardised ISO language and pre-programmed cycles.
- Simulate the execution of programmes numerically and check tool paths in a safe environment.
- Use and configure a truly dynamic tool management system.
- To take a pragmatic approach to the absolute and incremental coordinate systems.
- Design and machine a real mechanical component (steel, aluminium, soft materials).
- To carry out rapid prototyping of individual parts.
Specific Specifications
- Integrated Siemens Sinumerik CNC console with physical handwheels for manual axis feeds.
- Maximum distance between centres: 530 mm.
- Transverse travel (X-axis): 96 mm.
- Longitudinal travel (Z-axis): 275 mm.
- Tool turret: Automated 8-position turret.
- Simple and straightforward electrical connection via a standard 230V single-phase domestic socket.
- Enhanced safety thanks to an automatic mechanical locking mechanism for the access door during machining.
