NJ110_3_0
Industrial articulated robot with SIEMENS ONE CNC
A SIEMENS Solution Partner
Introduction

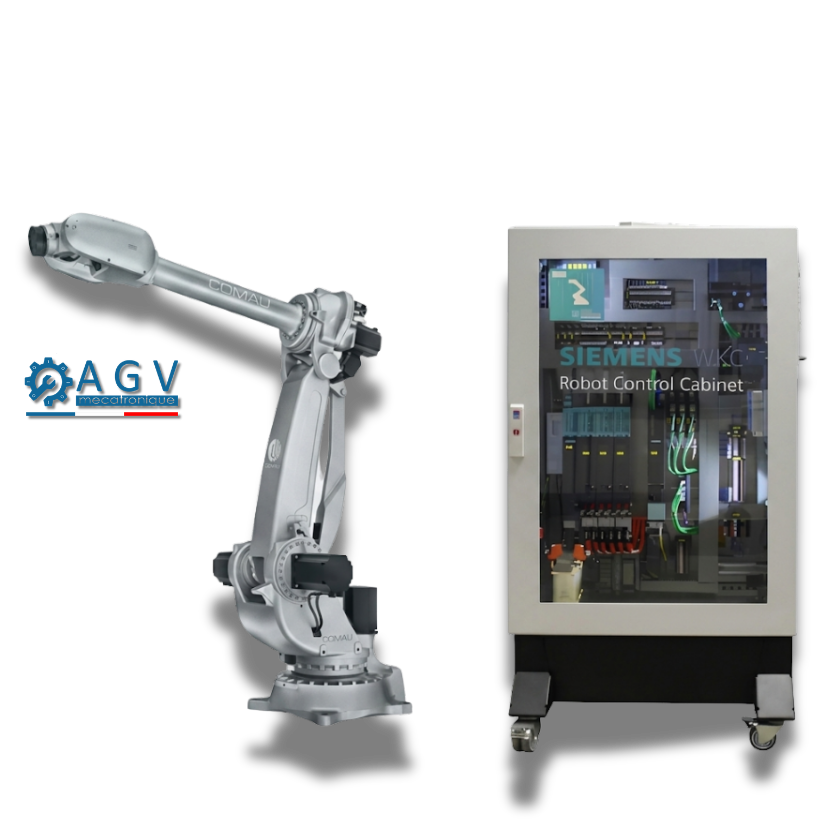

The ONE 6CONTROL NJ110_3_0 is an industrial articulated arm designed to provide the power and robustness essential to your automation solutions. Engineered for demanding applications, it ensures smooth, high-intensity operations whilst optimising the overall efficiency of your production lines.Positioning and concept
Designed with high performance in mind, this 6-axis robot combines exceptional reach with first-class energy efficiency. Its optimised architecture enables it to deliver superior productivity, a direct reduction in operating costs and excellent long-term reliability.
Tasks and materials
- Industrial assembly operations and the precise dosing of components.
- Packaging, packing and load-handling processes.
- High-precision laser cutting and welding applications.
- Spot welding and finishing of parts by deburring.
Features
- CNC ARTICULATED ROBOT
- 6 kinematic axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- Sturdy wrist with high torque capacity: Integration on end-of-arm manipulators for the smooth handling of complex tools.
- Waterproof and reinforced structure: Dual certification ensuring rigorous protection, ideally suited to harsh industrial environments.
Technical specifications
| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 110 kg (Additional load on the forearm: 50 kg) |
| Operating range (Max. range) | 2 980 mm |
| Repeatability accuracy | 0,07 mm |
| Mass of the structure (Weight) | 1 070 kg |
| Tool coupling flange | ISO 9409 – 1 – A 125 |
| Mounting configuration | On the floor or on the ceiling (Floor / Ceiling) |
| Overall protection rating | IP65 / IP67 |

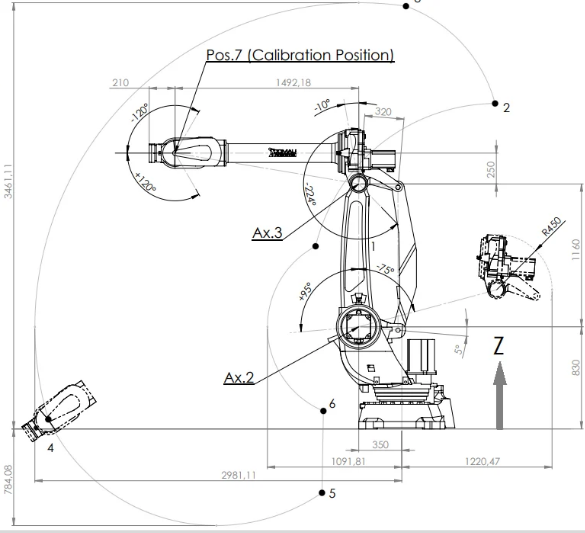

Dynamics and range of motion
| Axe | Working range (stroke) | Maximum speed | Maximum torque |
|---|---|---|---|
| Axe 1 | ± 180° | 110 °/s | — |
| Axe 2 | +95° à -75° | 110 °/s | — |
| Axe 3 | -10° à -256° | 110 °/s | — |
| Axe 4 | ± 280° | 190 °/s | 638 Nm |
| Axe 5 | ± 120° | 190 °/s | 638 Nm |
| Axe 6 | ± 2 700° | 230 °/s | 314 Nm |
Cabinet dimensions
- 1400 x 1088 x 500 mm
