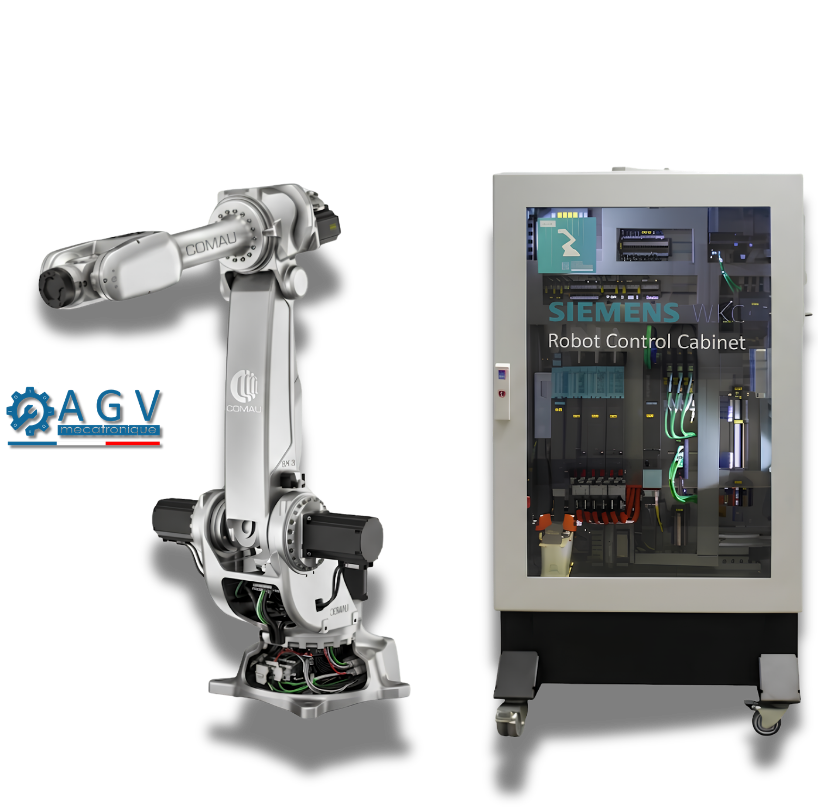

NJ130_2_6
Robot with dual measurement system and SIEMENS CNC
A SIEMENS Solution Partner
Introduction
The ONE 6CONTROL NJ130_2_6 has established itself as a leading industrial robotic arm, designed to bring high levels of power and robustness to the heart of your automated systems. Ideal for sustaining high production rates, it continuously optimises the operational profitability of your manufacturing processes.Positioning and concept
Designed with uncompromising industrial productivity in mind, this 6-axis robot combines an optimised working envelope with excellent energy efficiency. Its meticulously engineered mechanical design ensures low long-term running costs whilst maintaining consistent precision.
Tasks and materials
- Sub-assembly operations and precision fluid dispensing.
- End-of-line processes: robotic packaging and load packing.
- High-performance spot welding for the sheet metal industry.
- Advanced thermal processes: laser cutting and high-definition plasma cutting.
- Mechanical finishing and deburring operations.
Features
- CNC ARTICULATED ROBOT
- 6 axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- Wrist unit with high angular dynamics: Provides maximum clamping force on the end axes.
- High-protection waterproof design: Combined IP65/IP67 ratings, designed for extended service life in harsh industrial environments.
Technical specifications
| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 130 kg (Additional load on the forearm: 50 kg) |

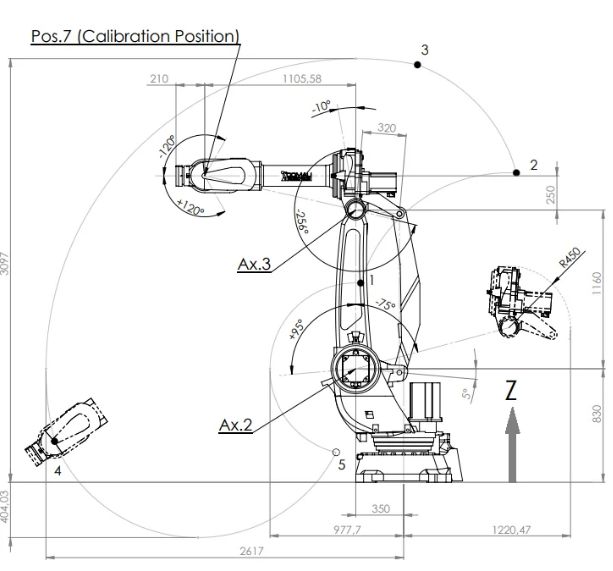

| Operating range (Max. range) | 2 616 mm |
| Repeatability accuracy | 0,07 mm |
| Mass of the structure (Weight) | 1 050 kg |
| Tool coupling flange | ISO 9409 – 1 – A 125 |
| Mounting configuration | On the floor or on the ceiling (Floor / Ceiling) |
| Overall protection rating | IP65 / IP67 |
Travel ranges and speeds
| Axe | Working range (stroke) | Maximum speed | Maximum torque |
|---|---|---|---|
| Axe 1 | ± 180° | 110°/s | — |
| Axe 2 | -75° à +95° | 110°/s | — |
| Axe 3 | -10° à -256° | 110°/s | — |
| Axe 4 | ± 280° | 190°/s | 638 Nm |
| Axe 5 | ± 125° | 190°/s | 638 Nm |
| Axe 6 | ± 2 700° | 230°/s | 314 Nm |
Cabinet dimensions
- 1400 x 1088 x 500 mm
