NJ60_2_2

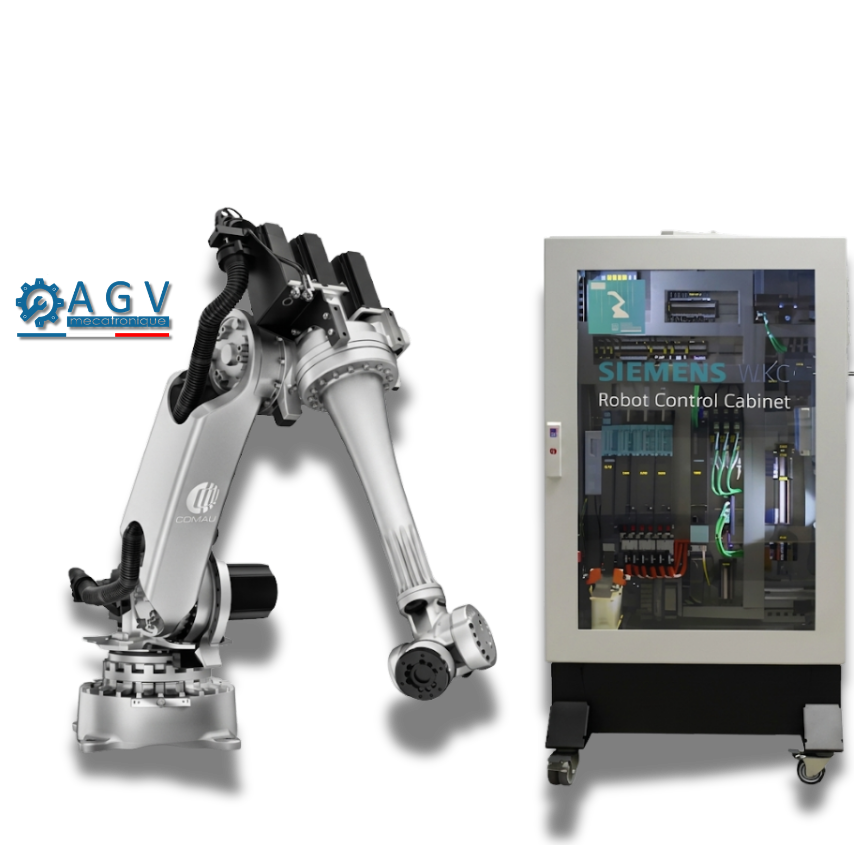

Robot with dual measurement system and SIEMENS CNC
A SIEMENS Solution Partner
Introduction
The ONE 6CONTROL NJ60_2_2 has been developed to precisely meet the speed and fluidity requirements of your automated production lines. Thanks to its lightweight design and remarkable trajectory control, this compact articulated arm optimises the flow of your parts by drastically minimising downtime and transition phases.Positioning and concept
Designed for the high-speed segment, this 6-axis robot prioritises dynamism to boost productivity in your workshops. The strategic reduction in its dead weight enables it to achieve lightning-fast accelerations whilst maintaining surgical-grade trajectory precision, making it ideal for continuous industrial processes.
Tasks and materials
- Arc welding processes and high-precision laser welding.
- Applications for laser cutting of complex shapes in sheet metal and plastics.
- Controlled dosing, fluid dispensing and adhesive application operations.
- High-speed handling, packaging and wrapping at the end of the production line.
- Automated assembly of mechanical or electronic components.
Basic features
- CNC ARTICULATED ROBOT
- 6 kinematic axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- Ultra-fast motion graphics: Angular speeds of up to 340°/s on the end axes to ensure optimum cycle efficiency.
- Higher protection rating (IP65 / IP67): Enables this model to be installed in confined spaces or areas exposed to welding spatter and fumes.
Technical specifications

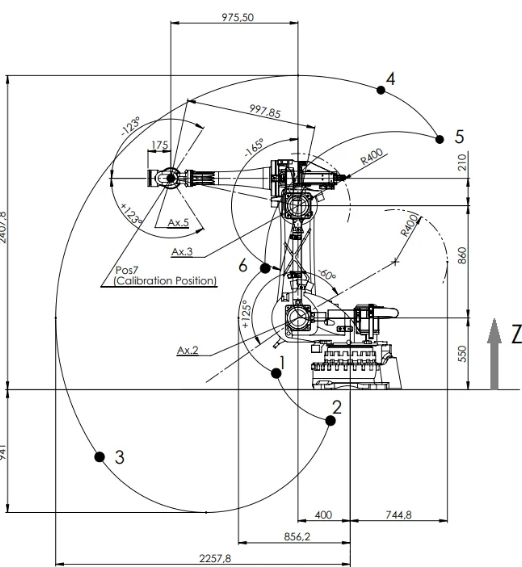

| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 60 kg (Additional load on the forearm: 20 kg) |
| Operating range (Max. range) | 2 258 mm |
| Repeatability accuracy | 0,06 mm |
| Mass of the structure (Weight) | 645 kg |
| Tool coupling flange | ISO 9409 – 1 – A100 |
| Mounting configuration | On the floor, on the ceiling or at an angle of up to 45° (Floor / Ceiling / Sloping) |
| Overall protection rating | IP65 / IP67 |
Travel ranges and speeds
| Axe | Travel range (stroke) | Maximum speed |
|---|---|---|
| Axe 1 | ± 180° | 170 °/s |
| Axe 2 | -60° à +125° | 150 °/s |
| Axe 3 | 0° à -165° | 165 °/s |
| Axe 4 | ± 2 700° (Max. torque: 221 Nm) | 265 °/s |
| Axe 5 | ± 123° (Max. torque: 221 Nm) | 250 °/s |
| Axe 6 | ± 2 700° (Max. torque: 118 Nm) | 340 °/s |
Cabinet dimensions
- 1400 x 1088 x 500
