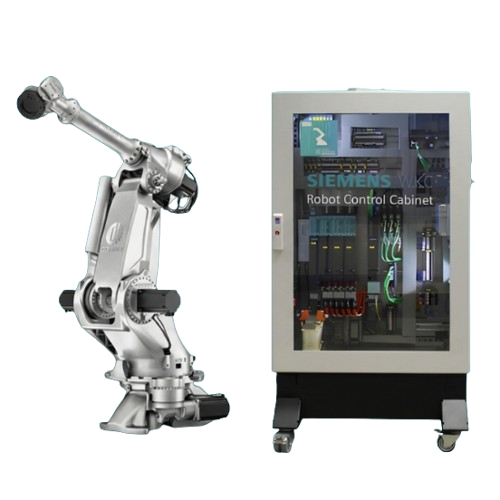

NJ370_2_7
Robot with dual measurement system and SIEMENS CNC
A SIEMENS Solution Partner
Introduction
The ONE 6CONTROL NJ370_2_7 It stands out as the workhorse of the range, designed to tackle the most extreme industrial challenges where raw power must be combined with precise path control. Capable of handling exceptional loads of up to 370 kg, this top-of-the-range articulated arm delivers maximum productivity to your automated systems.
Positioning and concept
A true benchmark in the ‘Ultra Heavy-Duty’ category, this 6-axis robot combines Herculean mechanical strength with remarkable energy efficiency for its class. Its reinforced architecture enables it to absorb intense dynamic stresses, ensuring controlled operating costs and unfailing durability on your production lines.
Tasks and materials
- High-precision heavy-duty machining and roughing of large metal or composite workpieces.
- Intensive spot welding and handling of bulky welding clamps.
- End-of-line operations: packaging, heavy palletising and handling of bulky items.
- Cutting-edge thermal and industrial processes: laser cutting, plasma cutting and controlled dosing.
- Demanding applications in foundry work and the finishing of components through deburring.
Features
- CNC ARTICULATED ROBOT
- 6 axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- Unité de poignet surdimensionnée développant des couples phénoménaux (plus de 2100 Nm sur les axes 4 et 5) pour la manipulation sans déflexion d’outillages très lourds.
- Conception hermétique certifiée IP65/IP67, offrant une barrière de protection totale contre les poussières abrasives et les projections de fluides industriels.
Technical specifications
| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 370 kg (Additional load on the forearm: 50 kg) |
| Operating range (Max. range) | 2 703 mm |
| Repeatability accuracy | 0,15 mm |
| Mass of the structure (Weight) | 2 100 kg |
| Tool coupling flange | ISO 9409 – 1 – 200 – 6 – M12 |
| Mounting configuration | On the floor |
| Overall protection rating | IP65 / IP67 |

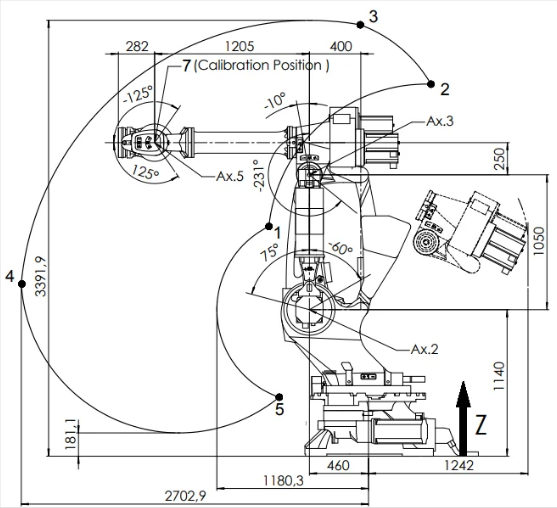

Dynamics and range of motion
| Axe | Working range (stroke) | Maximum speed | Maximum torque |
|---|---|---|---|
| Axe 1 | ± 180° | 85°/s | — |
| Axe 2 | +75° à -60° | 85°/s | — |
| Axe 3 | -10° à -231° | 85°/s | — |
| Axe 4 | ± 2 700° | 90°/s | 2 109 Nm |
| Axe 5 | ± 125° | 90°/s | 2 109 Nm |
| Axe 6 | ± 2 700° | 120°/s | 1 177 Nm |
Cabinet dimensions
- 1400 x 1088 x 500 mm
