NJ500_2_7

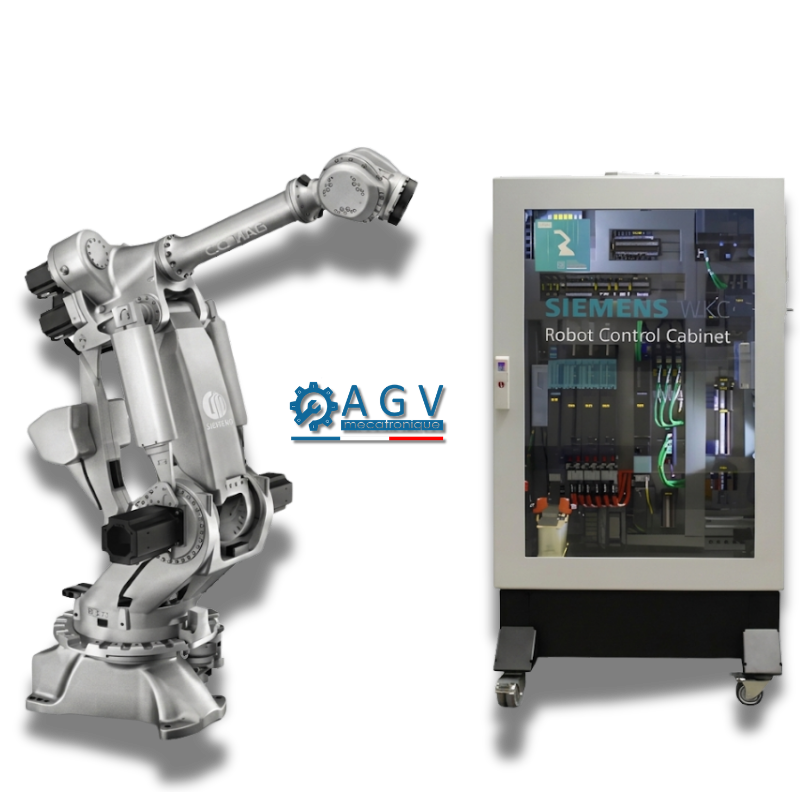

Robot with dual measurement system and SIEMENS CNC
A SIEMENS Solution Partner
Introduction
The ONE 6CONTROL NJ500_2_7 embodies the absolute power of the range, having been specifically developed for the most demanding automation scenarios where the handling of colossal loads must be combined with total versatility. Capable of lifting up to 500 kg, it provides a robust solution to the superior productivity requirements of modern factories.
Positioning and concept
Positioned in the ultra-high payload capacity robot segment, this 6-axis colossus combines exceptional mechanical strength with rigorous control of energy consumption. Its ultra-rigid structure is designed to absorb significant dynamic loads, ensuring minimal operating costs and rock-solid reliability during heavy-duty tasks.
Tasks and materials
- Heavy-duty handling and the transfer of large components during the production process.
- Precision machining and contour cutting of solid metal or composite structures.
- Intensive spot welding using bulky welding clamps.
- High-speed end-of-line operations: industrial packaging and heavy-duty palletising.
- Automated technological and cutting processes (laser, plasma) and 3D measurement control.
- Finishing of heavy castings by deburring.
Features
- CNC ARTICULATED ROBOT
- 6 axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- 2.4-tonne heavy-duty chassis: Providing perfect support and stability to counteract leverage effects and eliminate vibrations during machining or measurement.
- Extremely powerful mechanical wrist: Delivering an exceptional torque of 2,550 Nm on the bending axes, protected by dual IP65/IP67 waterproofing certification.
Technical specifications
| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 500 kg (Additional load on the forearm: 50 kg) |
| Operating range (Max. range) | 2 703 mm |
| Repeatability accuracy | 0,15 mm |
| Mass of the structure (Weight) | 2 400 kg |
| Tool coupling flange | ISO 9409 – 1 – 200 – 6 – M12 |
| Mounting configuration | On the floor |
| Overall protection rating | IP65 / IP67 |
Dynamics and range of motion
| Axe | Working range (stroke) | Maximum speed | Maximum torque |
|---|---|---|---|
| Axe 1 | ± 180° | 85°/s | — |
| Axe 2 | +75° à -60° | 85°/s | — |
| Axe 3 | -10° à -231° | 85°/s | — |
| Axe 4 | ± 2 700° | 90°/s | 2 550 Nm |
| Axe 5 | ± 125° | 90°/s | 2 550 Nm |
| Axe 6 | ± 2 700° | 120°/s | 1 569 Nm |
Cabinet dimensions
- 1400 x 1088 x 500 mm
