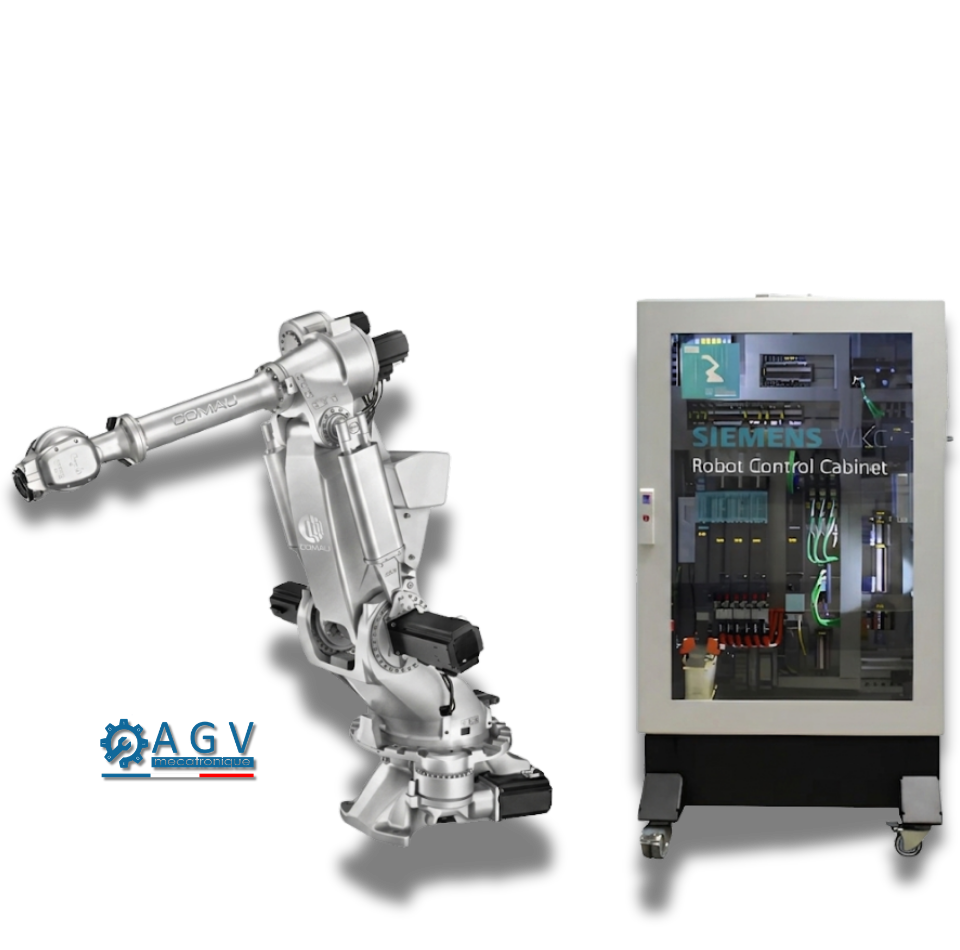

NJ650_2_7
Robot with dual measurement system and SIEMENS CNC
A SIEMENS Solution Partner
Introduction
The ONE 6CONTROL NJ650_2_7 is the undisputed flagship of the range, designed specifically to handle the heaviest and most demanding automation applications in the industrial sector. Capable of moving a record load of 650 kg, this top-of-the-range articulated arm provides the raw power essential to your production lines whilst optimising overall efficiency.
Positioning and concept
Designed for ‘Extreme Heavy-Duty’ operations, this 6-axis robot combines exceptional lifting capacity with rigorous management of operating and energy costs. Its reinforced kinematics and chassis are engineered to absorb significant dynamic loads, ensuring perfect stability and rock-solid industrial reliability.
Tasks and materials
- Handling of heavy loads and the transfer of bulky parts or large blocks.
- Heavy-duty spot welding with control of very bulky welding clamps.
- Usinage lourd haute précision et détourage de structures volumineuses en métaux ou composites.
- Intensive end-of-line processes: industrial packaging and high-capacity palletising.
- Thermal and automated cutting applications: plasma cutting and precision dosing.
- Parachèvement et ébavurage de pièces de fonderie massives.
Features
- CNC ARTICULATED ROBOT
- 6 axes
- CN SIEMENS ONE
- Floor-standing, for ceiling mounting
Key technologies and components
- A mechanical anchoring structure weighing nearly 2.5 tonnes, offering maximum inertia and rigidity to counteract leverage effects when handling at full load.
- An ultra-robust wrist capable of generating immense torque (3060 Nm on axes 4 and 5), fitted with IP65-rated sealing to ensure effective operation in the presence of splashes.
Technical specifications
| Type of robot | Articulated |
| Number of axes | 6 axes |
| Maximum load capacity | 650 kg (Additional load on the forearm: 50 kg) |
| Operating range (Max. range) | 2 703 mm |
| Repeatability accuracy | 0,15 mm |
| Mass of the structure (Weight) | 2 450 kg |
| Tool coupling flange | ISO 9409 – 1 – 200 – 6 – M12 |
| Mounting configuration | On the floor |
| Protection rating | IP44 / IP65 on the wrist |

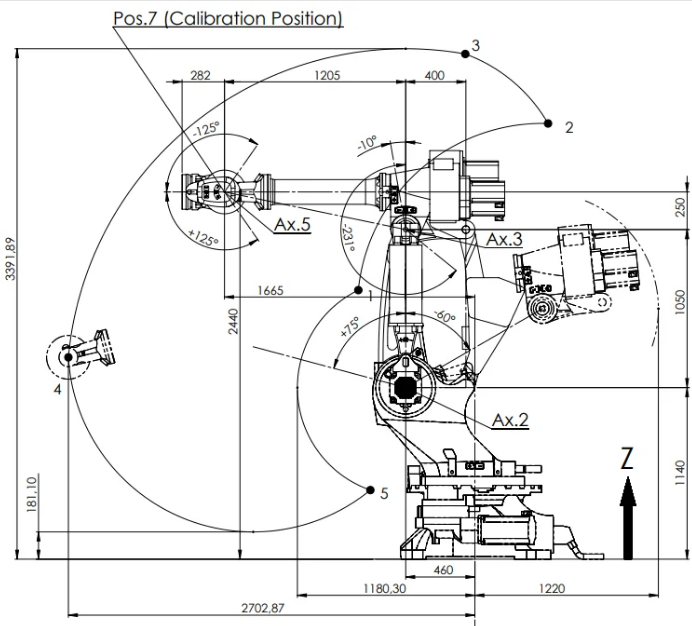

Dynamics and range of motion
| Axe | Working range (stroke) | Maximum speed | Maximum torque |
|---|---|---|---|
| Axe 1 | ± 180° | 75°/s | — |
| Axe 2 | -60° à +75° | 75°/s | — |
| Axe 3 | -231° à -10° | 75°/s | — |
| Axe 4 | ± 2 700° | 90°/s | 3 060 Nm |
| Axe 5 | ± 125° | 90°/s | 3 060 Nm |
| Axe 6 | ± 2 700° | 120°/s | 1 766 Nm |
Cabinet dimensions
- 1400 x 1088 x 500 mm
